INTRODUCING POWER SWIVEL

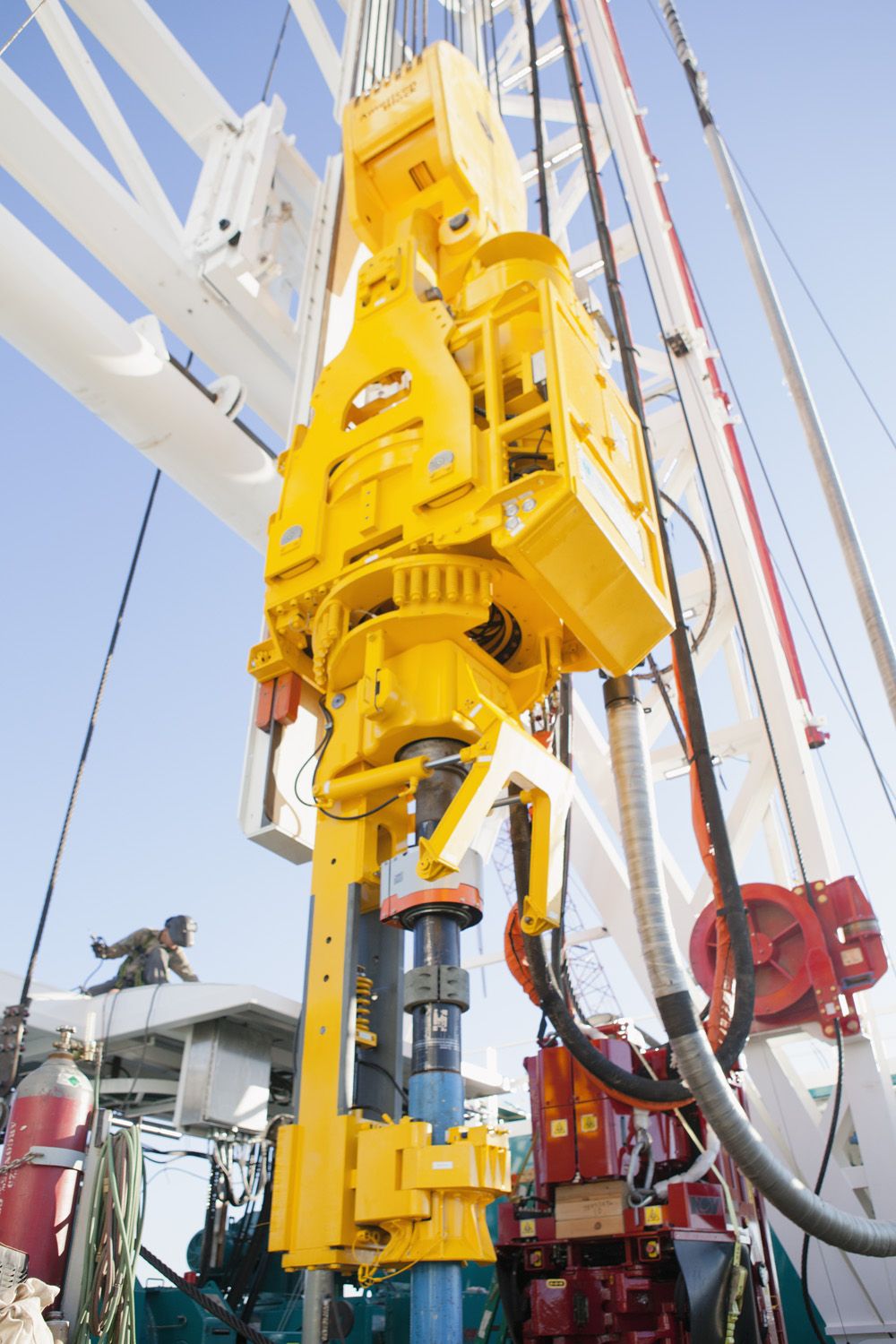

RML Power Swivel

Essential for extended milling operations and drilling out downhole components. We have enhanced and adapted the unit to meet all client safety requirements.

RML has begun providing Power Swivel services to clients in North Alberta following the acquisition of an upgraded LOGAN VTS-100 Power Swivel in the second half of 2025. With a 100-ton lifting capacity, this unit is the first and currently the only Power Swivel of its kind operating in Canada. LOGAN is a proven and reliable brand, and the compact design of the VTS-100 allows it to be used on standard workover rig masts. The Power Swivel is essential for extended milling operations and for drilling out bridge plugs, retainers, and other downhole components. The unit has been enhanced and adapted to fully meet all client safety requirements, and RML looks forward to supporting both existing and new clients with this specialized Power Swivel service.

Product Benefits

100-ton lifting capacity delivers the power needed for demanding workover and extended milling operations

Direct-drive hydraulic motor eliminates gears, improving reliability, efficiency and smooth operation

High torque in a compact design offers PS120-level torque in a PS85-sized unit, fitting standard workover rig masts

10,000 psi heavy-duty washpipe assembly increases durability and extends service life during high-pressure operations

Enhanced fluid flow and torque performance supports faster, more efficient drilling and milling jobs

Half-mulled and beveled lower entry guide.

VTS-100 Power Swivel Specifications

Model No.: VTS100
Nominal Load Rating (tons): 100
Maximum Torque (ft-lbs): 8,100
Maximum Speed (rpm): 185
Maximum Circulating Pressure: 10,000
Standard Stem Connection: 2-7/8 IF
Standard Saver Sub Connection: 2-7/8 IF
Gooseneck Connection: 2″ Female 1502 Hammer Union
Wireline Access Port: None
Stem I.D.: 2″
Power Swivel Head Weight (lbs): 1,600
